SKU: YDT-35B

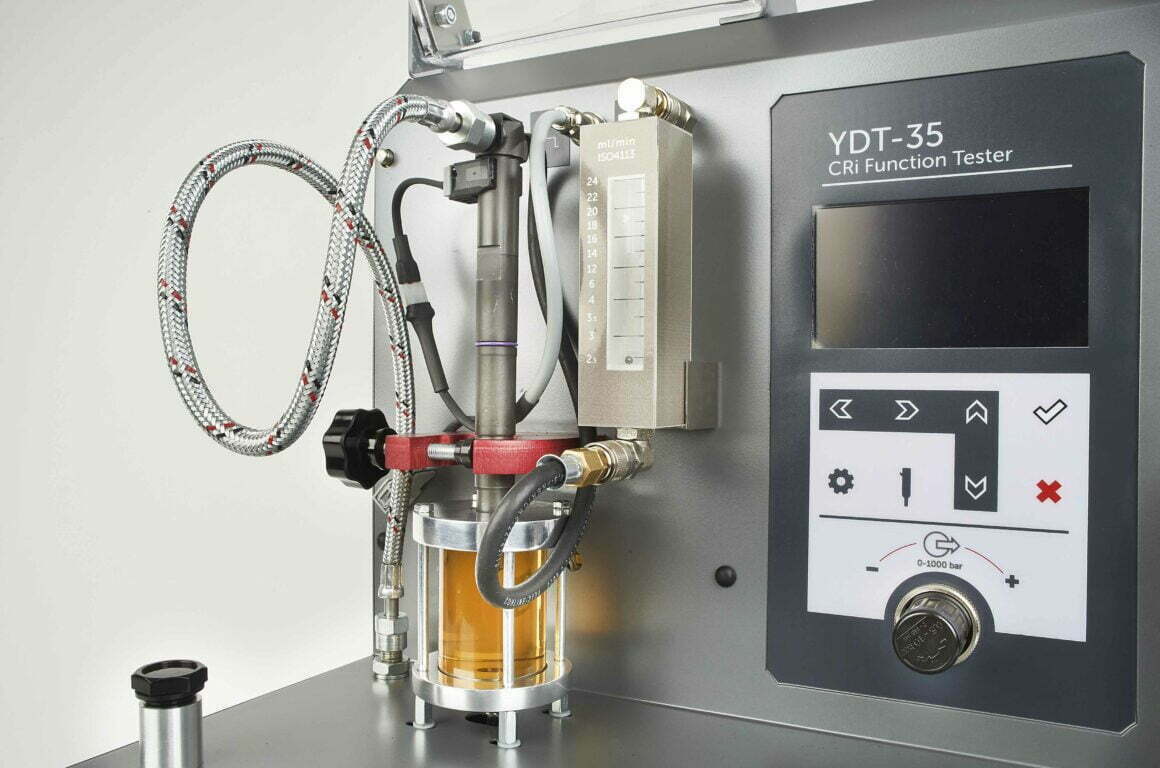

Common Rail Injector Function Tester
The Delphi YDT-35B is a Simple, Low Cost, Bench Top Diagnostic Solution for All Makes and Types of Common Rail Injectors.
Specifically designed by Hartridge for garages and entry-level workshops, Delphi’s YDT-35B gives technicians the ability to troubleshoot faulty injectors and determine which need to go to the repair network for service.
Complementing the existing Delphi on-vehicle test solutions for Common Rail injectors, the machine is the first step in the diagnostics process.
It combines an electrical injector test with visual spray pattern and back leak checks to identify individual injectors that have failed. Therefore, only faulty injectors need to be sent for repair, delivering a wider and more controlled stream of work to the authorised network, as well as providing another profitable service opportunity for garages and workshops.
Benefits to the Technician
Technical Specifications
Test bench for single CRi injector | Electrical tests: |
Max Pressure 1000 BAR | · Capacitance |
Single acting pneumatic pump | · Inductance |
Semi-automatic operation | · Resistance |

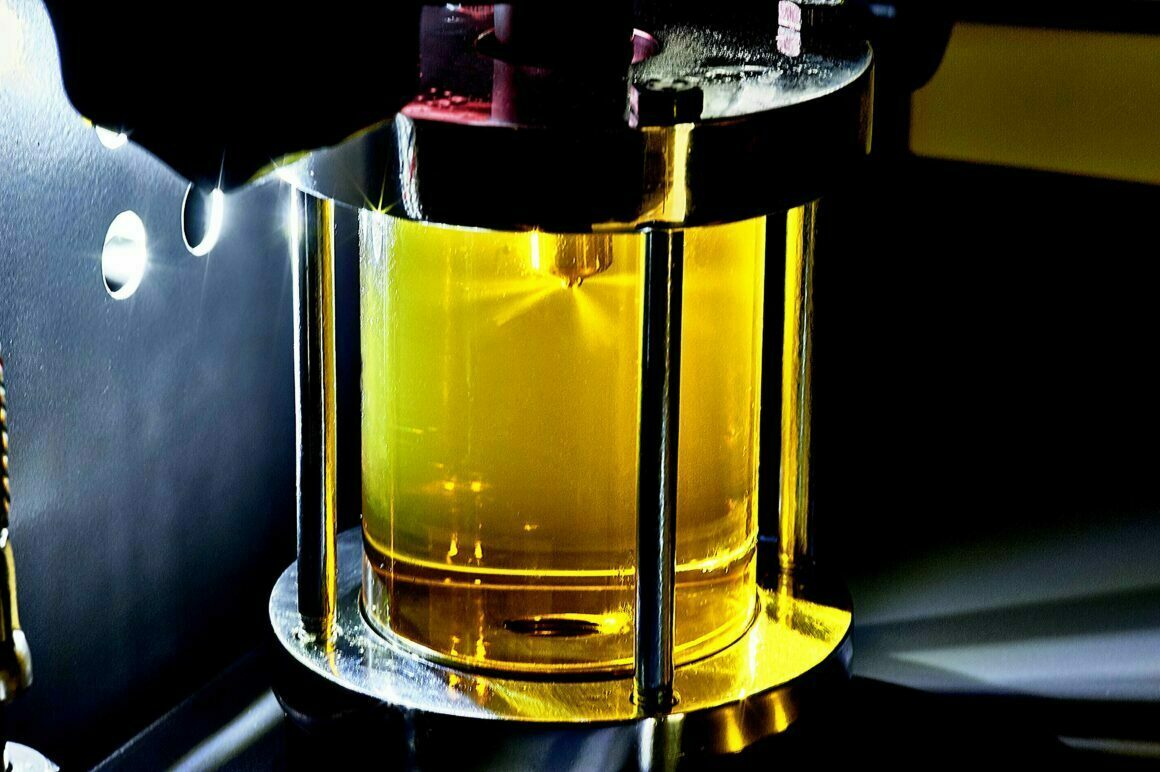

Clear protective cover and cut-off switch | Nozzle Spray Test – visual check |
Manually adjustable pressure control | Back leak measurement |

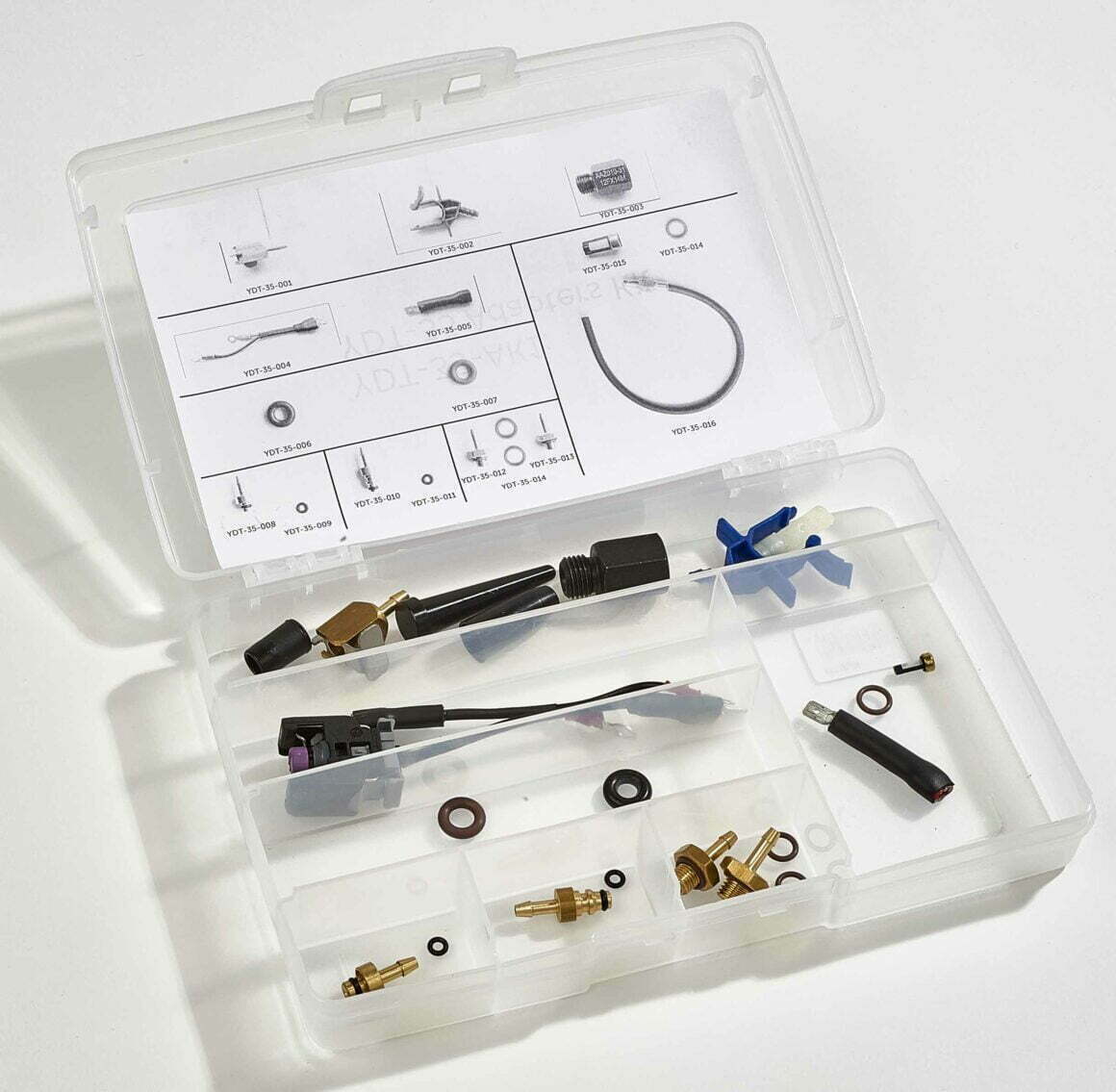

Generic injector profiles (Coil & Piezo) | Optional adapters for: |
Testing phase per injector <5 mins | · Bosch CRIN |
Repeatable & accurate measurement | · Denso HD |
Back Leak Measurement |
Please contact for a international shipping quote Contact
